Ch11 inductive foil type polyester polypropylene film composite dielectric capacitor

characteristic

In a certain temperature range, the temperature coefficient of capacitance is close to that of polycarbonate

Low high frequency loss

Small size and light weight

High insulation resistance and good electrical capacity stability

The vacuum packaging of epoxy material can improve the mechanical strength and moisture resistance of the products

It is suitable for timing oscillation circuit, etc

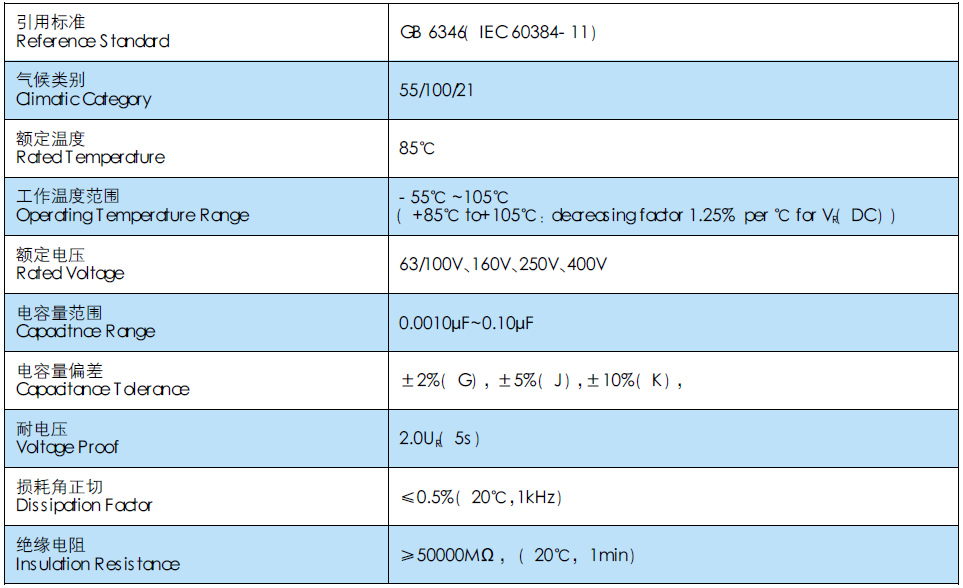

technical requirement

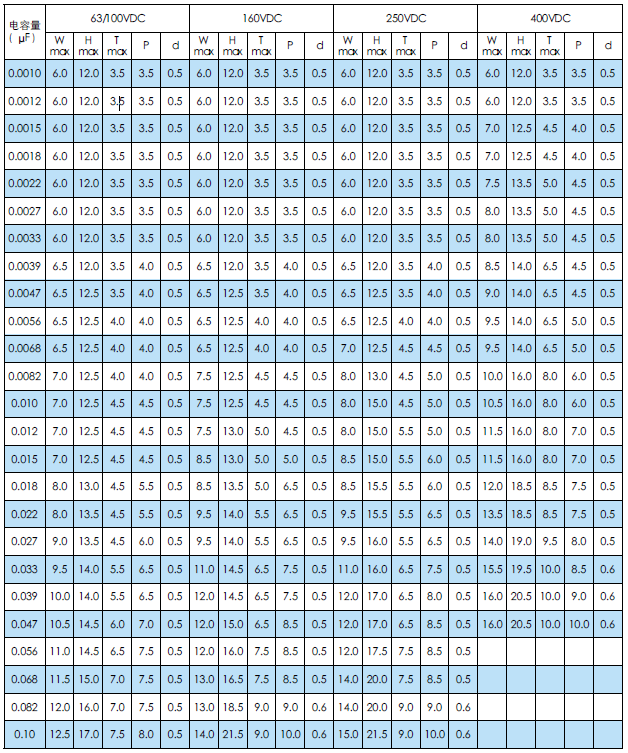

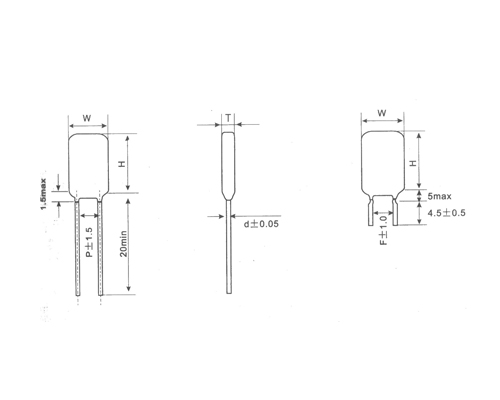

Dimensions
