CBB13 non inductive foil polypropylene film capacitor

characteristic

Foil capacitor, non inductive winding structure, immersion type

Excellent frequency and temperature characteristics

The loss is very small even at high frequency

● flame retardant epoxy powder packaging (UL94 V-0)

Main uses

It is widely used in high frequency DC and pulse circuits

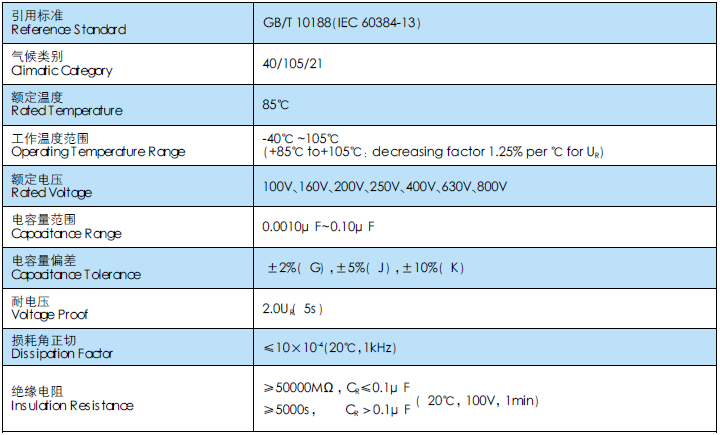

technical requirement

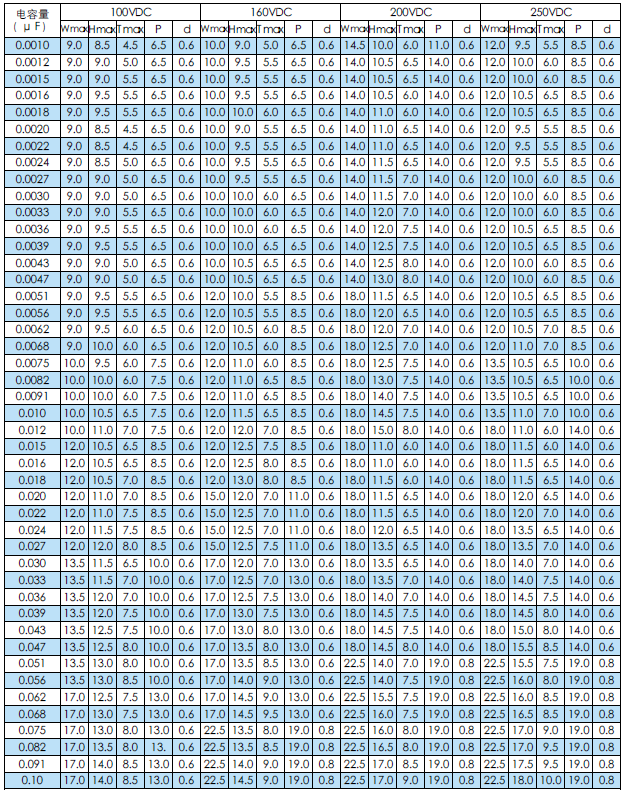

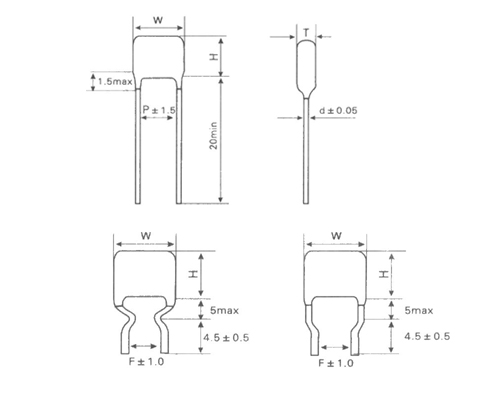

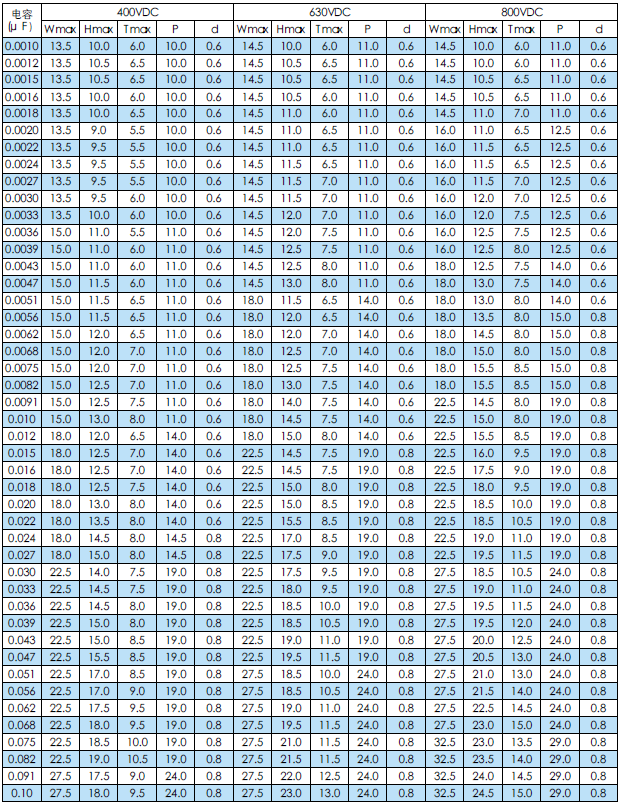

Dimensions
