Ch81 high voltage sealed composite dielectric capacitor

characteristic

Axial ceramic tube package, fully sealed structure

High voltage, high insulation resistance and other characteristics

For high voltage DC and pulse circuit

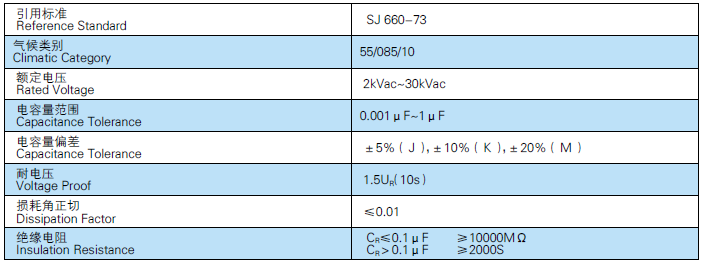

technical requirement

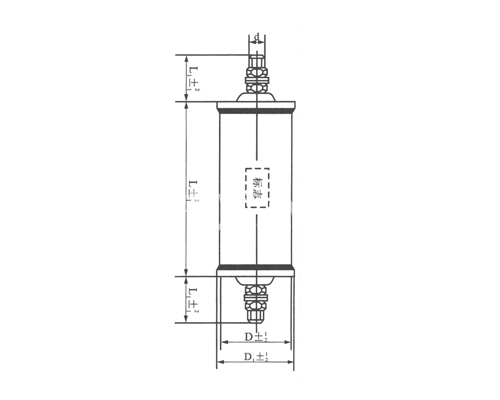

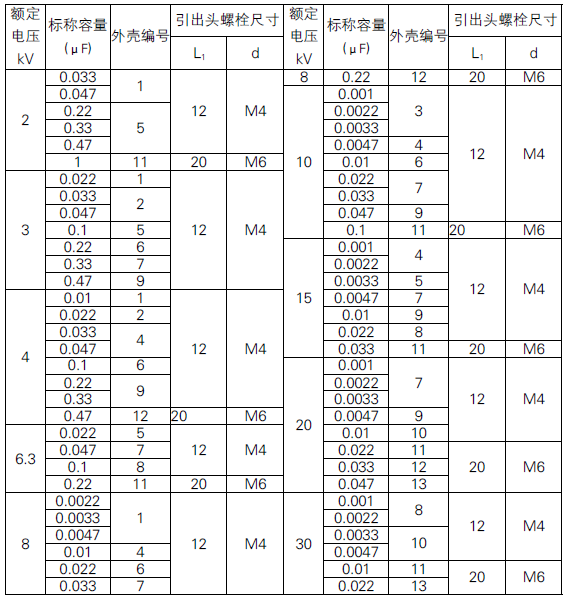

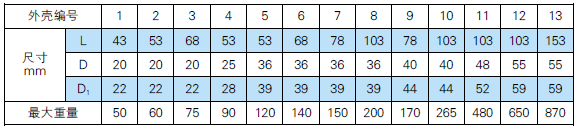

Dimensions
