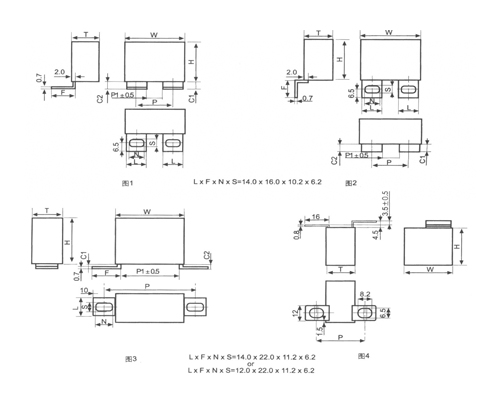

Outline drawing of mkp81a IGBT absorption capacitor

characteristic

It is widely used in high voltage and high frequency pulse circuit

Low loss and low internal temperature rise

Excellent flame retardant performance

It is suitable for IGBT

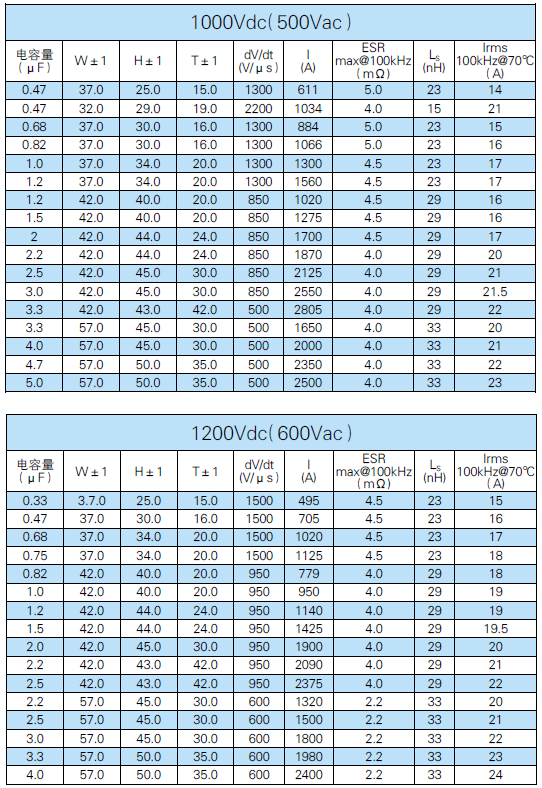

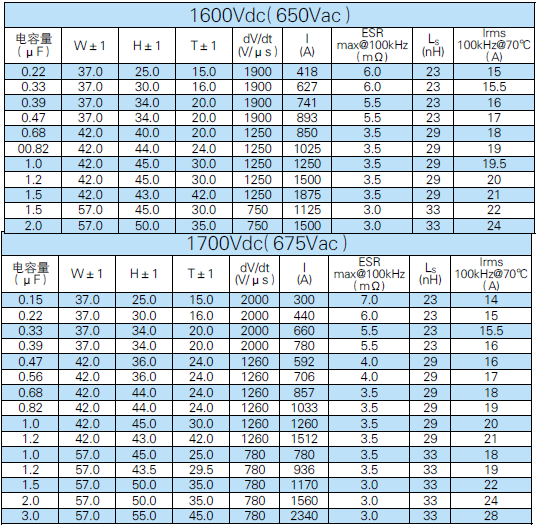

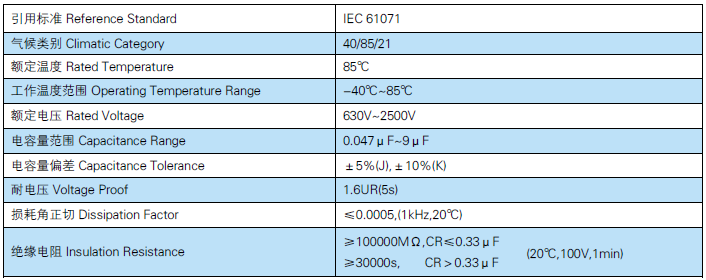

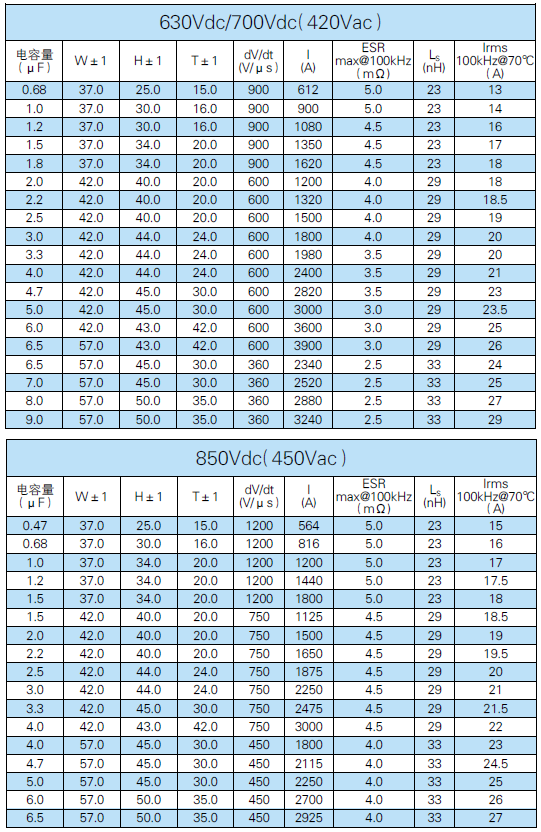

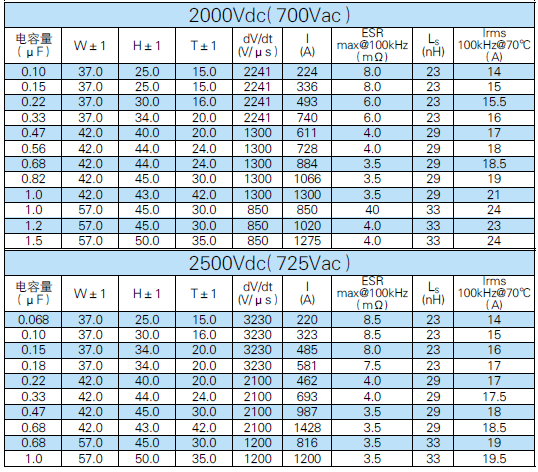

technical requirement

Dimensions
