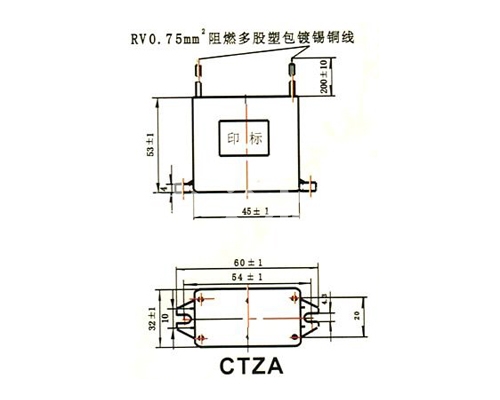

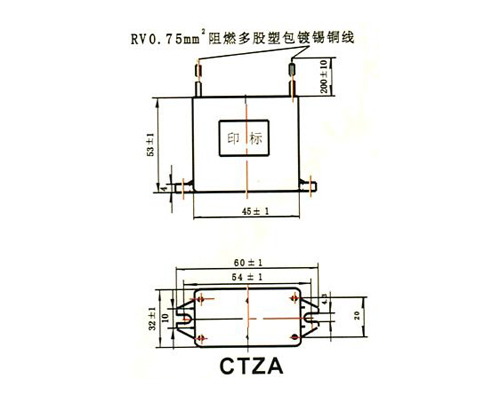

Outline drawing of ctza metallized polypropylene film fixed capacitor

characteristic

Rectangular flame retardant plastic shell with epoxy resin package.

Small volume, light weight, low loss, self-healing.

It is mainly used for railway coding protection box, which plays a compensation role in resonance circuit

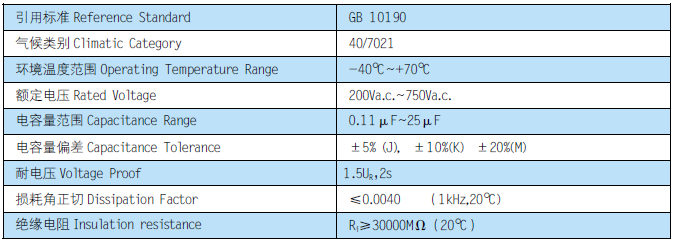

technical requirement

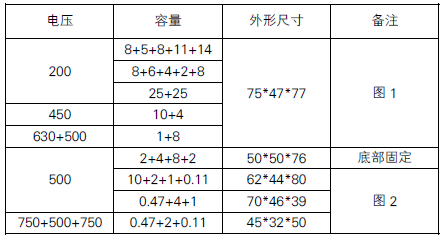

Dimensions
